Mainboard and Power Capacitor Set

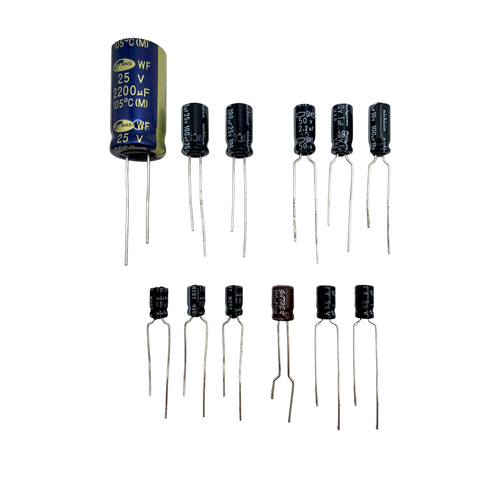

Replacement electrolytic capacitor set for Frontloader NES® (NES-001) logic and power boards.

Main NES Logic Board
C1    100uF    6.3V
C9    2.2uF    50V
C23    1uF    50V

Alps Modules with BA20 (or similar) Diode Bridge

Alps - Green PCB with floating cap
C19    1uF    50V
C30    2200uF    25v
C33    1uF    50V
C34    100uF    6.3v

Alps - Brown PCB
C1    10uF    35v (25v is fine here)
C21    2200uF    25V
C25    100uF    10V
C23    10uF    35v
C29    1uF    50V

Alps Modules with 4x Discreet Diode Bridge

Alps Power & Modulator PCB: FR853
C1    10uF    16V (PAL only)
C21    2200uF    25V
C25    100uF    10V
C23    100uF    25v
C29    1uF    50V
C34    10nF    (for reference, not included in set)
C35    1uF    50V
C36    10uF    16v

Alps Power & Modulator PCB: SH-SH5 / FS074
C21    2200uF    25V
C25    100uF    10V
C23    100uF    25v
C29    1uF    50V
C36    10uF    16v
C37    1uF    50V

Mitsumi Power & Modulator PCB TDK-T12V
C2    10uF    16v
C6    10uF    16v
C26    2200uF    25v
C29    100uF    16v
C31    100uF    25v
C32    10uF    16v

Mitsumi Power & Modulator PCB MTM-8V-0 / VIX
C5    10uF    35v (25v is acceptable)
C20    2200uF    25v
C21    100uF    16v
C24    100uF    10v

Mitsumi Power & Modulator PCB TDK-T31V
C6    10uF    16v
C21    2200uF    25v
C22    100uF    16v
C25    100uF    10v

SKU: P68569
